Aluminum
Tilt & Turn Windows
FOR HOMES AND BUSINESSES
Tilt & Turn Windows
The ultimate testament to the marriage of form and function, Tilt & Turn Windows are finally making their entrance onto the American market.

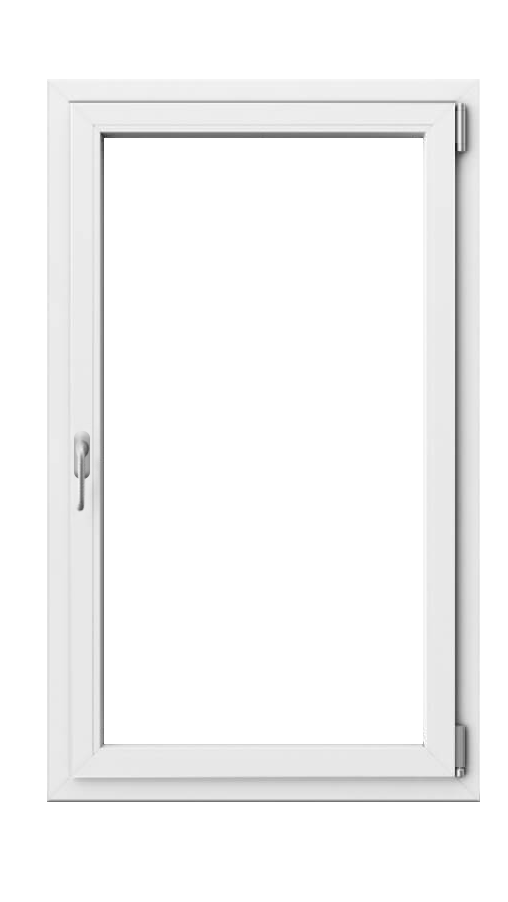

This versatile design combines three windows in one: an inward opening casement window in turn position, a secure top-venting hopper when tilted, and a tightly sealed picture window when closed. Durability, lightness, intuitive installation, and ease of maintenance make our Tilt & Turn windows perfect for contemporary commercial and residential spaces where convenience and energy conservation are prioritized.
Vetrina's aluminum extrusion Tilt & Turn systems are thermally broken and feature European multi-point locking hardware, aimed at ultimate durability, longevity, and security. Ideally suitable for residential and commercial applications. Vetrina specializes in window products for single homes, as well as large multifamily and business projects, with the capacity to manufacture, deliver, and provide exceptional support on all stages of the project.
60mm Frame/Sash
with Thermal Break
VETRINA COR-60 HIDDEN SASH
Sections:
- Frame: 2-3/8” (60 mm)
- Sash: 2-3/8” (60 mm)
• Maximum dimensions/sash:
- Width up to 51” (1,300 mm)
- Height up to 98” (2,490 mm)
• Multipoint locking hardware
• Dual-sealed warm edge spacer
• Max glazing thickness: 1-1/8” (28mm)
• Acoustic insulation: Rw = 41 dB
• Max weight/sash: 353lb. (160kg)
• Profile thickness: 1/16” (1.6 mm)
• AAMA Rating: AW-PG80
• Air Infiltration: 0.01 cfm/ft²
• Water resistance: 12.11 psf
• U-Value: 0.38
Download:
Spec Sheet | CAD Drawing
70mm Frame/Sash
with Thermal Break
VETRINA COR-70 HIDDEN SASH
Sections:
- Frame: 2-3/4” (70 mm)
- Sash: 2-3/4” (70 mm)
• Maximum dimensions/sash:
- Width up to 51” (1,300 mm)
- Height up to 98” (2,490 mm)
• Multipoint locking hardware
• Dual-sealed warm edge spacer
• Max glazing thickness: 1-9/16” (40mm)
• Acoustic insulation: Rw = 46 dB
• Max weight/sash: 353lb. (160kg)
• Profile thickness: 1/16” (1.9 mm)
• AAMA Rating: AW-PG80
• Air Infiltration: 0.01 cfm/ft²
• Water resistance: 12.11 psf
• U-Value: 0.25
Download:
Spec Sheet | CAD Drawing
80mm Frame/Sash
with Thermal Break
VETRINA COR-80 HIDDEN SASH
Sections:
- Frame: 3-1/8” (80 mm)
- Sash: 3-1/8” (80 mm)
• Maximum dimensions/sash:
- Width up to 51” (1,300 mm)
- Height up to 98” (2,490 mm)
• Multipoint locking hardware
• Dual-sealed warm edge spacer
• Max glazing thickness: 2” (50mm)
• Acoustic insulation: Rw = 46 dB
• Max weight/sash: 353lb. (160kg)
• Profile thickness: 1/16” (1.9 mm)
• AAMA Rating: AW-PG80
• Air Infiltration: 0.01 cfm/ft²
• Water resistance: 12.11 psf
• U-Value: 0.15
Download:
Spec Sheet | CAD Drawing

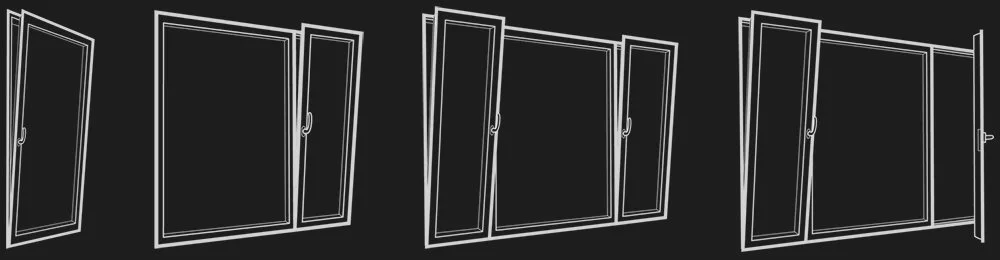

Vetrina Tilt&Turn Operational Schematic

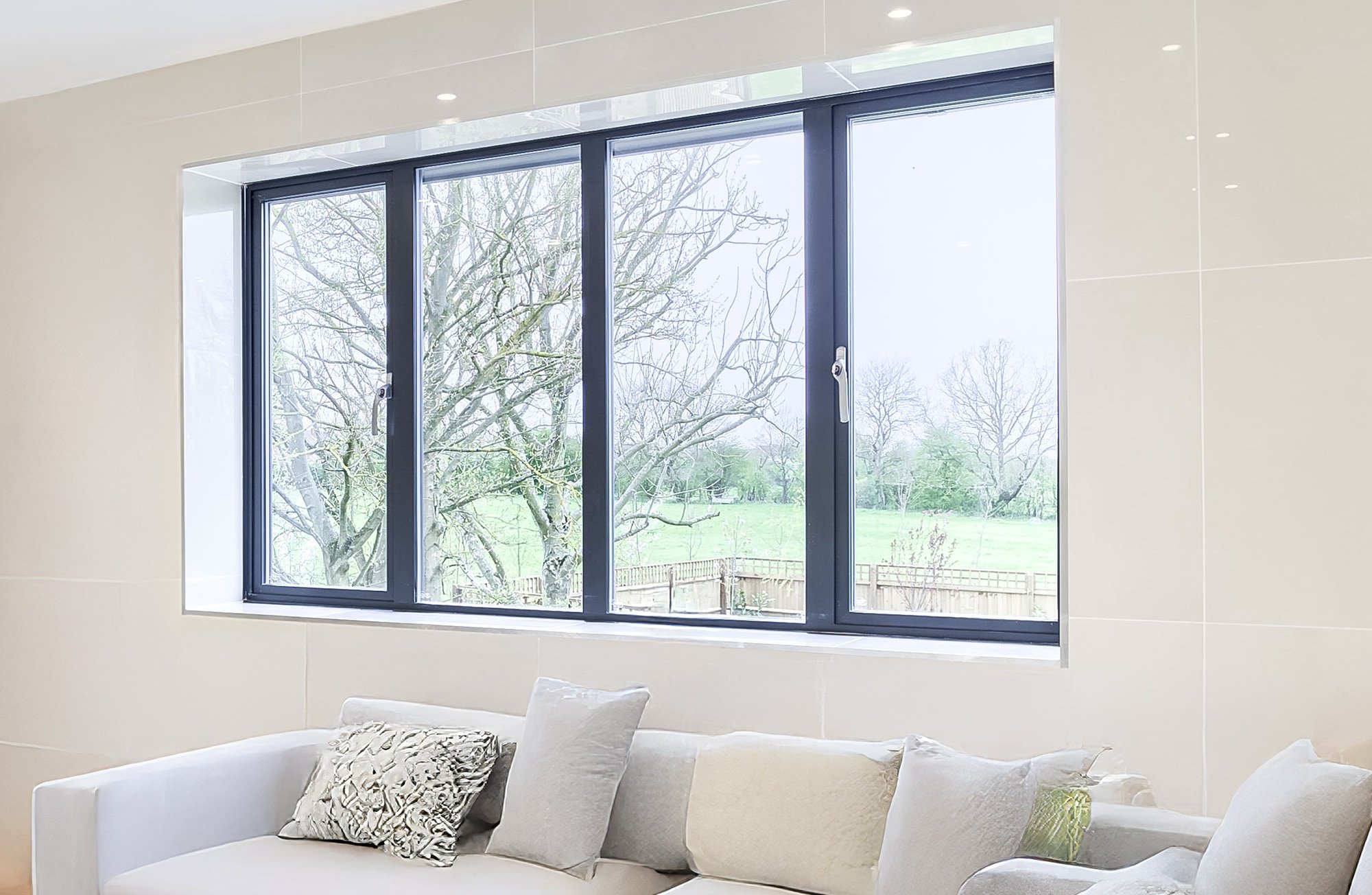

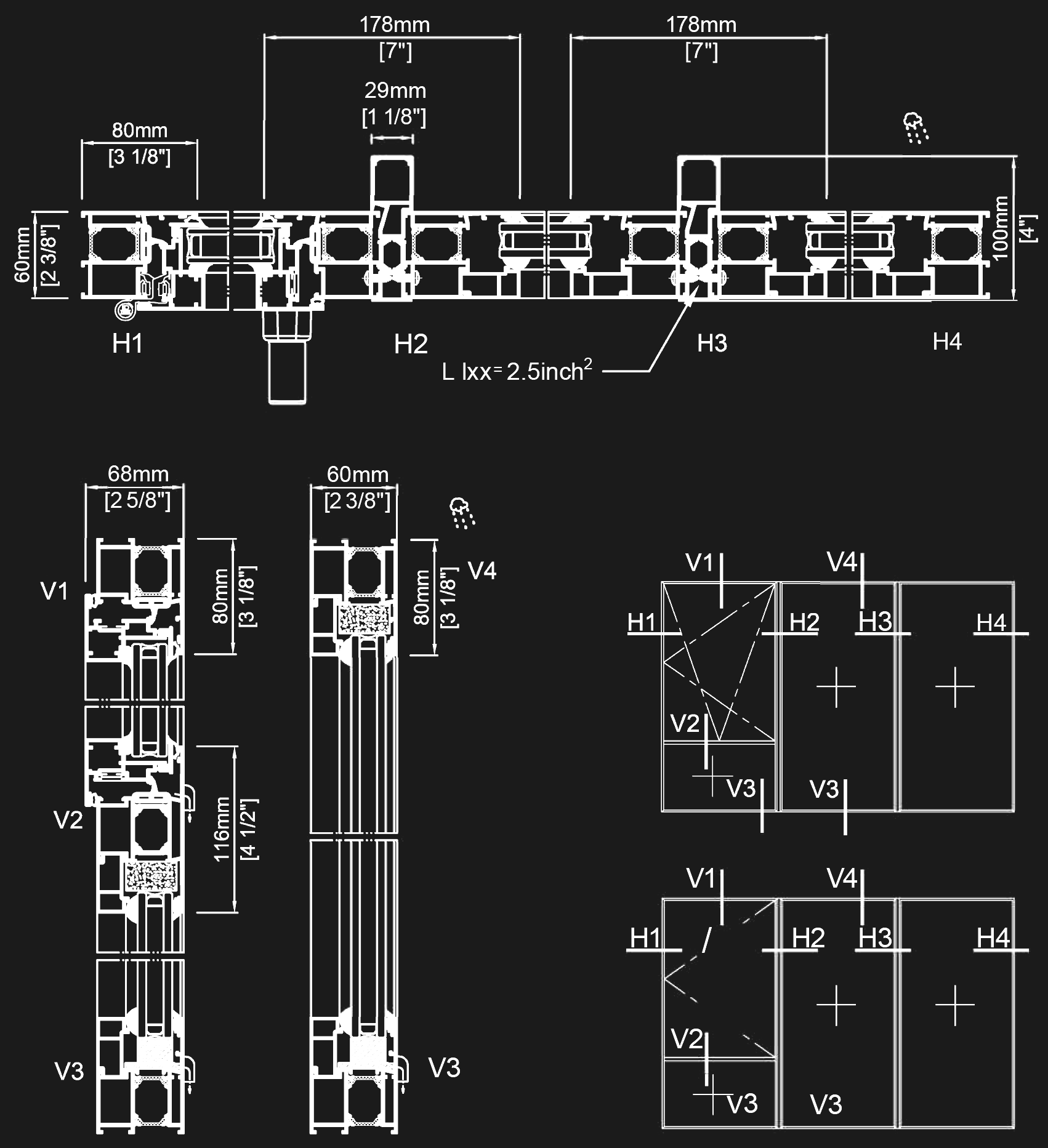

Window Wall – Casement and Tilt&Turn Windows:
(COR 60 Hidden Sash) Spec Sheet | CAD Drawing
Features
- NOISE, DUST, AND WEATHER RESISTANT
- EASY OPERATION AND MAINTANENCE
- WIDE RANGE OF POWDERCOAT COLORS
- ADVANCED MULTI-POINT SECURITY
- EASY EGRESS (EMERGENCY EXIT USE)
- INTUITIVE AND EASY INSTALLATION
- LOW-E ENERGY CONSERVING GLASS
- WIDE RANGE OF HARDWARE STYLES
Virtually maintenance-free, aluminum is a much better choice for window construction material than the traditional wood and plastic derivatives. Light, strong, flexible, recyclable, and precise. Exceptionally energy-efficient, naturally resistant to weathering and corrosion, it will withstand structural damage and deformation under even the harshest conditions. Snow, hail, intense heat, or hurricane-level winds, – Vetrina Windows provides the structure and design to stand firmly against extreme elements in all weather conditions and climate zones.
Tilt & Turn Windows provide occupants with complete control of airflow and microclimate, boosting wellness, productivity of occupants, and overall satisfaction with the living space – which raises quality of life, as well as tenant retention rates. Vetrina’s Tilt & Turn systems offer a clean aesthetic in a modern durable and secure form factor.
Our Tilt & Turn systems are unique in that their designs allow for unparalleled flexibility, including variants without muntins or grids, for a clean uninterrupted view. Vetrina’s window systems come standard with energy-conserving Low-E glass that lets the light through, but keeps the warmth inside and the cold outside. A wide range of optional glass options is available as well.
Vetrina offers a wide range of glass options for any style and purpose: from the standard hard-coat Low-E energy saving glass to soft-coat argon gas insulated assembly, various tints, tempered glass, laminated, as well as single, dual, triple pane glass, and even military-grade blast-proof glass for extra security.
Vetrina’s aluminum profiles are made from the highly durable 6063-T6 alloy, known for its exceptionally high tensile and yield strengths. Our sealing technology offers best in class thermal protection. Insulating strips used in our products are designed to absorb and trap moisture for the entire lifespan of the product. Available in Hidden Sash and Exposed Sash versions.
Handles and Hardware
Designed especially for our Tilt & Turn systems, the Minimalist handles offer a streamlined 21st century stylistic approach to a classic piece of hardware, thanks to the completely concealed positioning and retaining mechanism. Its simplicity allows for very quick installation directly into the window frame with a simple “click”. Available in a full range of RAL finishes.
The Sirius, Leo, Lynce, and Alfa/Gamma cremone handles feature 7 - 8mm spindles for increased resistance and come fully assembled ready for right hand operation, and can be easily switched to the left hand configuration by changing the transmission lever position. These models feature internal mechanisms precision-adjusted for longevity and stress-tested in high cycle count environments. Optional multi-point locking mechanisms available.
Anti-Theft Burglary Prevention Hardware
EVO Security Hardware uses mushroom security cams especially engineered for tightness, working in tandem with anti-friction locks that improve resilience against forced entry attempts. The EVO-Security system is designed to work with Tilt & Turn and Casement windows, and cremone handles with keys, and allows for multiple locking configurations where up to 14 locking points can be utilized for security-critical applications.
Unlimited Colors
Vetrina Windows uses AAMA 2604 Powder Coating as the primary process for applying colors to aluminum profiles. Our process yields highly durable long-lasting surfaces, resistant to severe atmospheric conditions. We are proud to offer the full RAL chart as the range of color options for the Tilt & Turn aluminum frames. Dual-color options are also available, where the exterior and interior frames can be different colors.
CONTACT US TODAY FOR MORE INFORMATION ABOUT WHAT VETRINA TILT & TURN WINDOW SYSTEMS CAN DO FOR YOUR PROPERTY

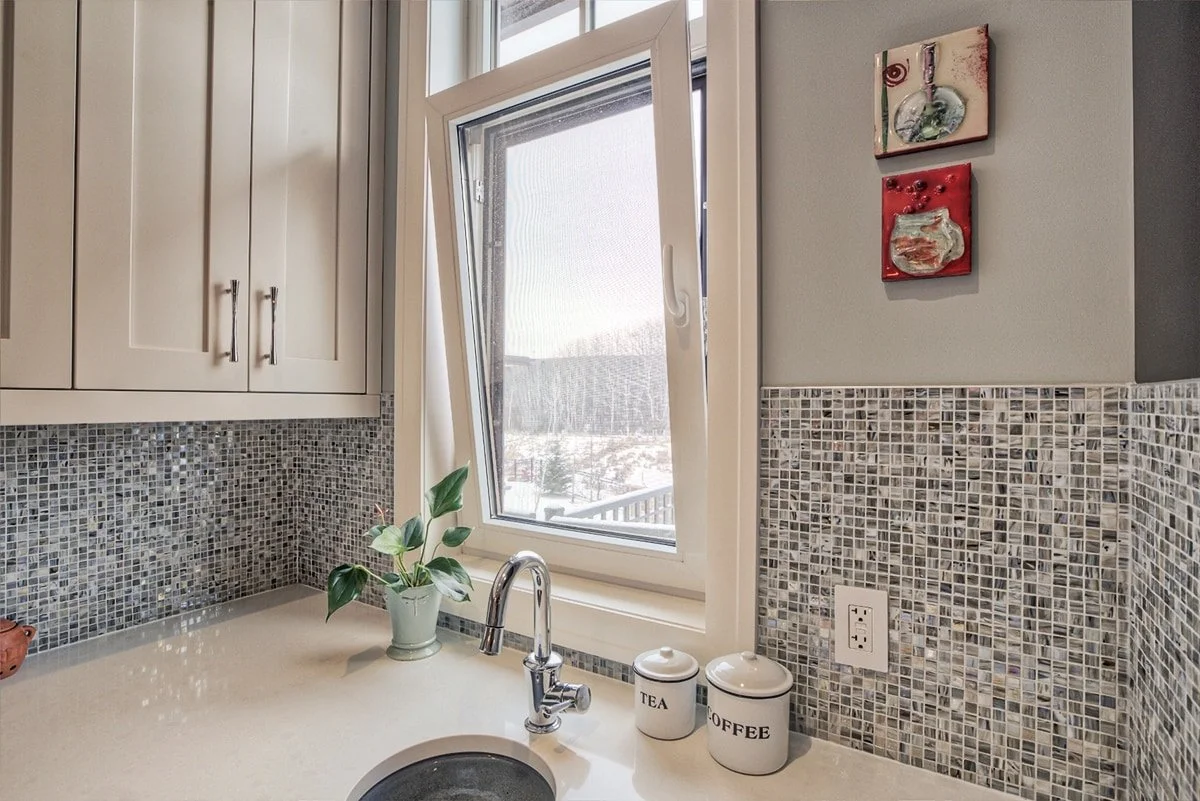

The two opening positions of the Tilt & Turn window offer benefits unmatched by any other configuration. The turn position allows full access, and invites the air into the room, and since it opens inwards – the cleaning is a breeze. When the window is in the Tilt position (open at the top), it becomes a safety precaution: small children and most pets cannot climb up the window or fall. This position also prevents intruders from entering the space (the angle of the opening can be customized to customers’ specifications), but ventilation is still possible.
For the forward-thinking energy-conscious builders and architects who want the best for their occupants, Vetrina Windows offers well-thought out high quality solutions. Our windows maximize the abundance of natural light, and offer beautiful unobstructed views without glares, while reducing heat and cold transfer. Vetrina’s window products provide comfort and increased energy efficiency without compromising the functionality or aesthetics.
Tilt & Turn Mulled Window Installation Video
Tilt & Turn Window Systems Gallery
FREQUENTLY ASKED QUESTIONS
How do I know whether Vetrina’s Tilt & Turn Window Systems are right for my space?
Our Tilt & Turn Window Systems are fully customizable and will fit any project and application, up to 8’2” tall and 5’2” feet wide.
What material are they made out of?
All of our products are constructed from the highest grade 6063 T-5 thermal extrusion aluminum alloy, making them as sturdy as steel, but lighter, and much more resilient and long-lasting than plastic and wood derivatives utilized by many of our competitors.
What about the warranty?
Hardware and moving components are warranted against manufacturing defects for five (5) years. Glass is warranted against seal failure caused by manufacturing defects for five (5) years. Aluminum profiles are warranted against manufacturing defects resulting in a loss of structural integrity for fifteen (15) years.
Can the Tilt & Turn Windows be locked with a key?
Yes, several locking options are available, including advanced anti-burglar protection and multi-point locking mechanisms.
Would my Tilt & Turn Windows provide an airtight weatherproof seal?
Yes, Vetrina’s windows are designed to withstand hurricane-level winds, and offer great moisture and dust resistance.
How much do Vetrina’s Tilt & Turn systems cost?
Because each project is different in its dimensions and other factors, we need to quote pricing based on your unique requirements. Please give us a call at 888.342.9097, or you can send us your project information to info@vetrinawindows.com.
Where are they manufactured?
All of our products are manufactured locally in our production facility near Philadelphia, PA.
What about installation?
While our systems don’t require making structural changes to your building, this isn’t a DIY project. Professional installation is required. If you’re located in the Greater Philadelphia area – we can recommend an installer.
