The handle is made of 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted. Stainless steel handles are constructed from a tube with
a diameter of Ø45x25.
Type 316 stainless steel offers greater resistance to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water.
The handle is made of aluminum with tube diameter of Ø45x25. Aluminum handles can be varnished (in any color from the RAL palette).
Optional Access Control Features:
✓ EKEY fingerprint scanner dLine
✓ Fingerprint scanner Idencom CMOS
✓ Fingerprint scanner Idencom Mini-X-App
✓ Fingerprint scanner NAVKOM
✓ Touch sensor
✓ Microsensor
✓ Microswitch
✓ LED in a base
The handle is made of 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted. Stainless steel handles are constructed from a tube with
a diameter of Ø45x25.
Type 316 stainless steel offers greater resistance to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water.
The handle is made of aluminum with tube diameter of Ø45x25. Aluminum handles can be varnished (in any color from the RAL palette).
Optional Access Control Features:
✓ EKEY fingerprint scanner dLine
✓ Fingerprint scanner Idencom CMOS
✓ Fingerprint scanner Idencom Mini-X-App
✓ Fingerprint scanner NAVKOM
✓ Touch sensor
✓ Microsensor
✓ Microswitch
✓ LED in a base

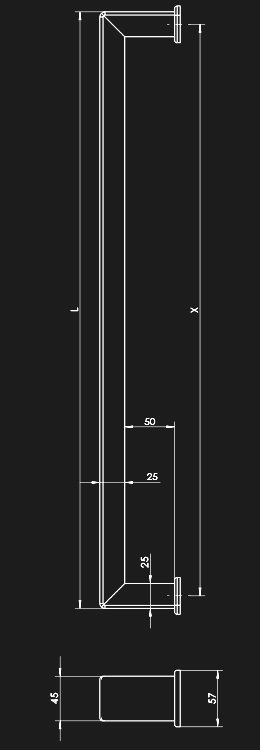

| DIMENSIONS | STAINLESS STEEL 316 | ALUMINIUM | |
| LENGTH L | HOLE SPACING X | Ø45x25 | Ø45x25 |
| 300 | 275 | ✓ | ✓ |
| 400 | 375 | ✓ | ✓ |
| 500 | 475 | ✓ | ✓ |
| 580 | 555 | ✓ | ✓ |
| 600 | 575 | ✓ | ✓ |
| 800 | 775 | ✓ | ✓ |
| 1000 | 975 | ✓ | ✓ |
| 1200 | 1175 | ✓ | ✓ |
| 1400 | 1375 | ✓ | ○ |
| 1600 | 1575 | ✓ | ○ |
| 150-1200 | L-25 | ● | ● |
| 1201-1600 | L-25 | ● | ○ |
