uPVC Windows
VEKA Series 82

The VEKA SERIES 82 system with 82 mm of frame depth and an innovative multi-chamber geometry provides excellent thermal insulation and protection from the elements.

Thanks to an integrated median gasket, the system is able to offer a particularly high performance in terms of energy efficiency—appropriate for passive house applications, especially when triple pane glazing is utilized.

Vetrina’s VEKA SERIES uPVC systems are very easy to clean and maintain thanks to their flush glazing beads and ultra-smooth non-porous surfaces. Better yet—the materials are 99% recyclable.

—

Veka Series 82

• 7 frame insulation chambers
• 6 sash insulation chambers
• 3 sealing gaskets
• Visible surface:
- Fixed: 73 mm
- Frame and Sash: 114 mm
• Frame depth: 82 mm
• Max glazing: 48 mm
• Max sash width: 55”
• Max sash height: 98”
• Uf: 0.14 Btu/h·ft2·F
• Rw: 47 dB

Details
Veka Series 82 with Renovation Frame

• 7 frame insulation chambers
• 6 sash insulation chambers
• 3 sealing gaskets
• Visible surface:
- Fin: 35/65 mm
- Frame and Sash: 114 mm
• Frame depth: 82 mm
• Max glazing: 48 mm
• Max sash width: 55”
• Max sash height: 98”
• Uf: 0.14 Btu/h·ft2·F
• Rw: 47 dB

Details
Veka Series 82NL

The VEKA SERIES 82NL profile, developed for the Scandinavian market, was designed with slanted surfaces to complement modern and minimalist architecture of the 20th century. It’s intended for use in spaces that require abundance of natural light and large windows, while being mindful of energy conservation and isolation from the elements.
• 7 frame insulation chambers
• 6 sash insulation chambers
• 2 sealing gaskets
• Uf: 0.14 Btu/h·ft2·F
• Frame depth: 116 mm
• Rw: 47 dB • Max glazing: 48 mm

Details
Veka Series 82 Artline

The 82 ARTLINE profile is designed with an emphasis on streamlined aesthetic of contemporary architecture with its large glazing surfaces, while providing excellent thermal and acoustic insulation properties.
• 5 insulation chambers
• 3 sealing gaskets
• Frame depth: 82 mm
• Max glazing: 48 mm
• Uf: 0.13 Btu/h·ft2·F
• Rw: 42 dB

Details

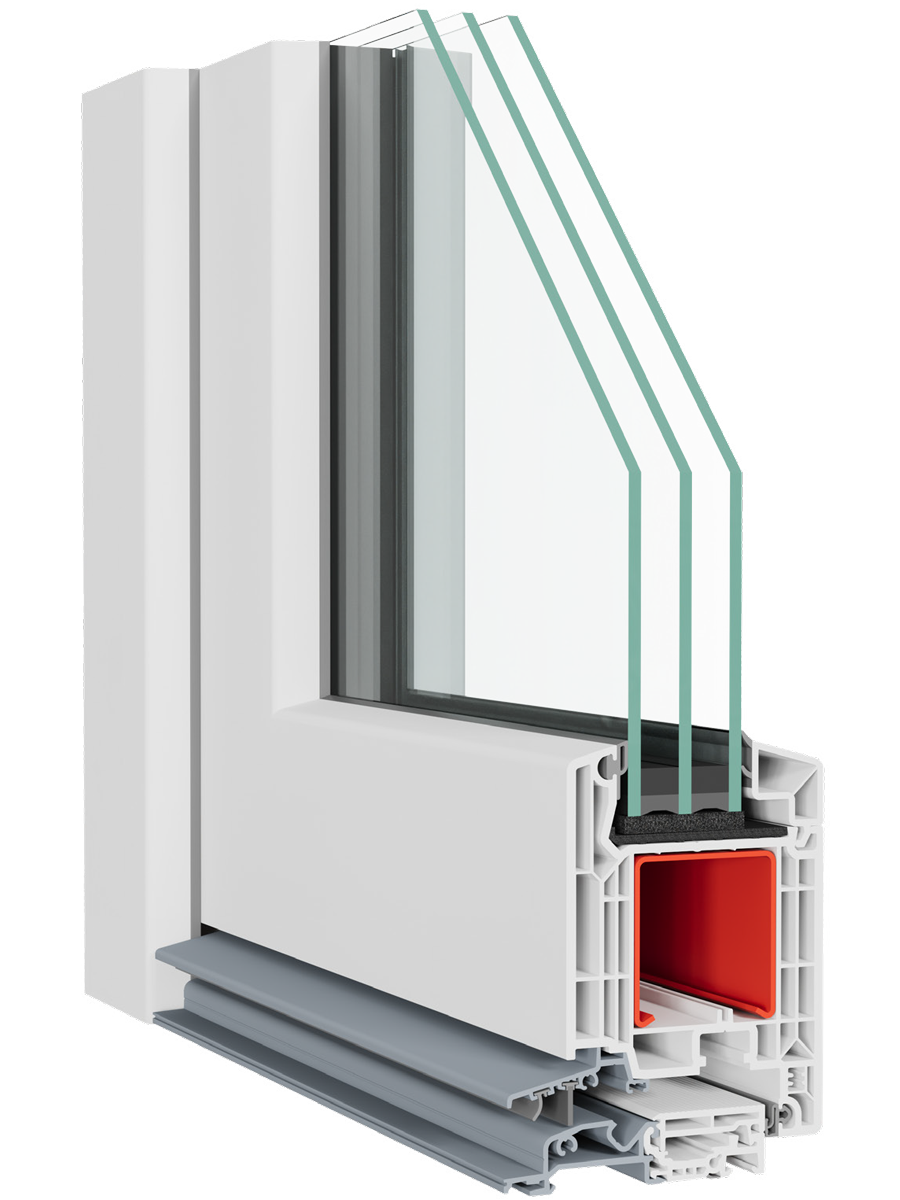

Veka Series 82 Swing Door

With an innovative geometry featuring six insulating chambers, the VEKA SERIES 82 DOOR system offers excellent thermal insulation and a tight seal. Its straightforward and efficient assembly process makes it the right choice for any project.
• 6 sash insulation chambers
• 1 sealing gasket
• Frame depth: 82 mm
• Max glazing: 48 mm
• Uf: 0.16 Btu/h·ft2·F
• Rw: 47 dB

Details
