Rehau Series
SYNEGO MD

Vetrina Windows brings the tried and trusted quality of Rehau to the US market with the 80mm SYNEGO MD line of PVC windows.

Secure and sustainably made, the new PVC Profile System from Rehau with excellent acoustic and thermal insulation properties will make your home an oasis of warmth, silence and security.

The outstanding thermal insulation properties of Synego windows also provide a long-term investment in the environment. When installed in your home, they achieve up to 45% better thermal insulation compared to conventional PVC windows.

Profile Depth: 80mm
U-value: 0.17 Btu/h·ft2·F
Max Height: 8’2”
Max Glass Thickness: 2”
Rw: 47dB
Fully Recyclable

• 80mm profile depth for a clean look and ideal thermal performance

• Low 117mm profile for more light in the room

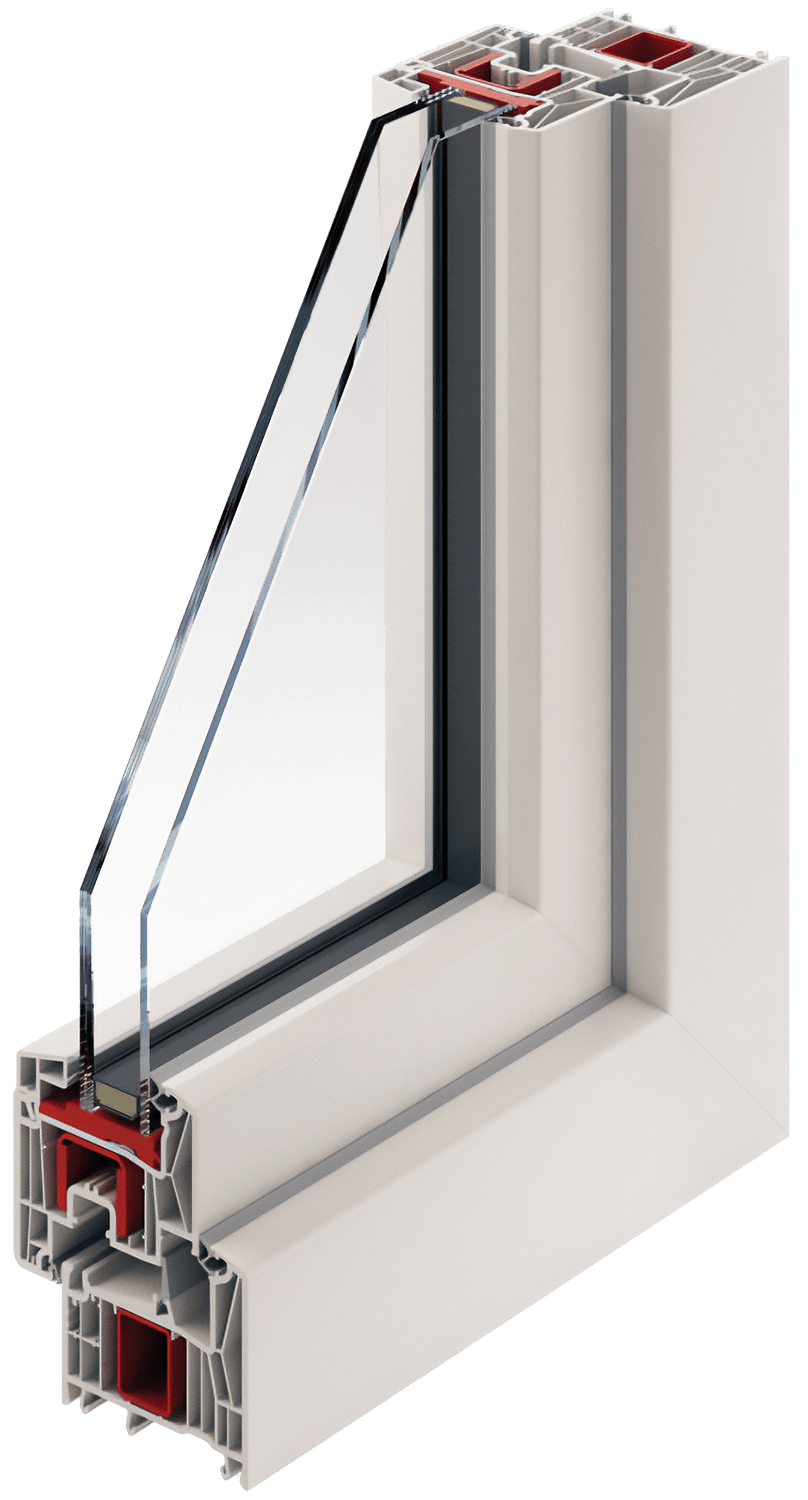

• 7 chambers in the frame, 6 chambers in the sash for extra insulation

• Perimeter gaskets for reliable protection against drafts and moisture

OPERATION

Vetrina’s Rehau Series Synego MD profiles offer complete architectural design freedom, with window frames not limited to the traditional rectangles. Straight, rounded or circular – there’s a world of options.

Style elements, glazing bars or creative window divisions allow for an unlimited individual expression. Synego windows are ideal whether you’re renovating, or building new from the ground up!

The slimline design really makes Rehau Synego MD window sashes stand out. The secondary sash creates a particularly fine central section which lets plenty of light into the living space.

The rougher textures on normal surfaces make it easier for dirt to become lodged in the depressions. Rehau uses High Definition Finishing to achieve perfectly smooth surfaces on its window frames, which stay cleaner longer and are easy to clean.

Synego’s design and construction depth allow for special functional glass to be used which provides improved soundproofing for a more quiet and relaxing environment.

Synego windows open and close easily, and function smoothly all year – year after year. Rehau’s special sealing system protects against drafts and moisture, while ensuring optimized closing pressure for everyday comfort.

REHAU’s LINEA window handles’ minimalist profile is designed to complement the streamlined aesthetic of SYNEGO windows. It adjusts to a range of profile thicknesses using a spring-activated spindle mechanism. A patented locking mechanism provides the window with additional anti-burglar security.

When the handle is turned – it locks with a click. The connecting element between the handle and the spindle acts as a “mechanical diode”. This element ensures the normal operation of the window handle from the inside, and at the same time blocks any attempt to activate the mechanism from the outside.

To elevate the visual harmony between the window units and your interior – Rehau offers various insill designs with a visible height of just over 1.5”, and depths ranging from 6 to 20 inches.

Constructed from extra-durable heat-resistant polymers, these insills will stay cool in the summer, and thanks to their non-porous scratch-resistant finish they don’t absorb dirt and clean up easily with just soap and water.

Rehau Series SYNEGO MD

SYSTEM CAPABILITIES
