uPVC Windows
CORTIZO Series
Known for its worldwide leadership in aluminum profiles, CORTIZO had recently introduced a brand new line of precision engineered high-quality uPVC solutions.
Despite its 70mm frame depth, Vetrina’s Cortizo Series 70AD uPVC system incorporates five insulation chambers within both the frame and the sash, ensuring an optimal degree of thermal and acoustic barrier. The system’s longevity, admirable mechanical properties, and resistance to environmental factors is supported by Cortizo’s specially developed extra-durable uPVC formula and their expertise in structural engineering.
Vetrina brings Cortizo's structural expertise and material know-hows to a wide selection of window and door models that exceed the most rigorous standards for value and real world performance.
-
Cortizo Series 70AD
Uf: 0.16 Btu/h·ft2·F
Frame depth: 70 mm
Visible section: 70 mm
Sash depth: 70 mm
Max width: 47”
Max height: 63”
Max weight per sash: 286lb.
Max glazing: 42 mm
Acoustic insulation: Rw 46dB -
70AD with Insulation Frame
Uf: 0.16 Btu/h·ft2·F
Frame depth: 105-165 mm
Visible section: 118 mm
Sash depth: 70 mm
Max width: 47”
Max height: 63”
Max weight per sash: 286lb.
Max glazing: 42 mm
Acoustic insulation: Rw 46dB -

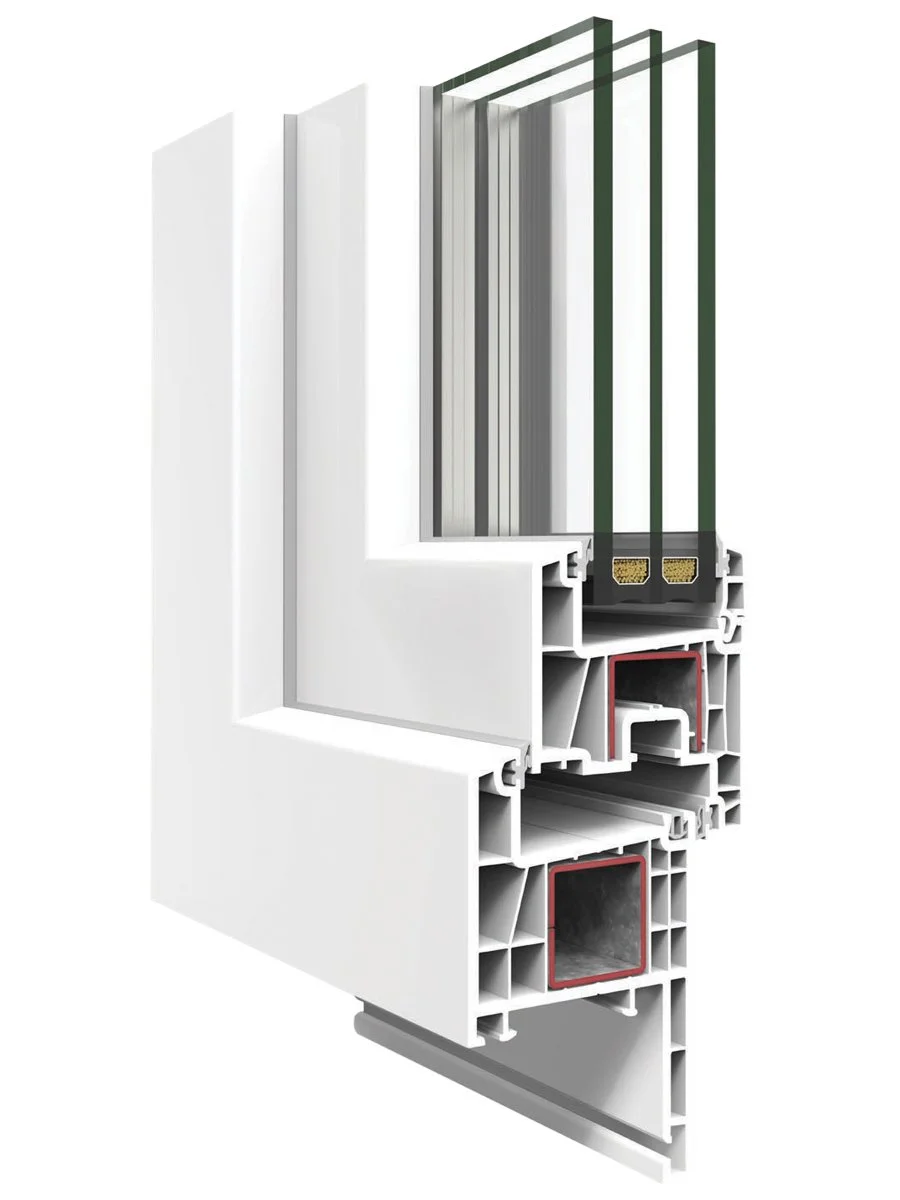

70AD with Renovation Frame
Uf: 0.16 Btu/h·ft2·F
Frame depth: 60 mm + 10 mm
Visible section: 57/65 mm
Sash depth: 70 mm
Max width: 47”
Max height: 63”
Max weight per sash: 286lb.
Max glazing: 42 mm
Acoustic insulation: Rw 46dB -
Cortizo Series 70AD Swing Door
Uf: 0.16 Btu/h·ft2·F
Sash depth: 70 mm
Visible section: 118 mm
Sash depth: 70 mm
Max width: 35”
Max height: 94”
Max weight per sash: 285lb.
Max glazing: 42 mm
Acoustic insulation: Rw 46dB -
Cortizo Series C70 Sliding
Uf: 0.23 Btu/h·ft2·F
Frame depth: 70 mm
Visible section: 149 mm
Sash depth: 46 mm
Max width: 63”
Max height: 82”
Max weight per sash: 308lb.
Max glazing: 26 mm
Acoustic insulation: Rw 38dB
SYSTEM CAPABILITIES
FIXED
WINDOWS
SLIDING
WINDOWS
AWNING
WINDOWS
RIBBON
WINDOWS
INSWING & OUTSWING
WINDOWS
TILT & TURN
WINDOWS
TILT/HOPPER
WINDOWS
SWING DOORS
SPECIALTY
WINDOWS
