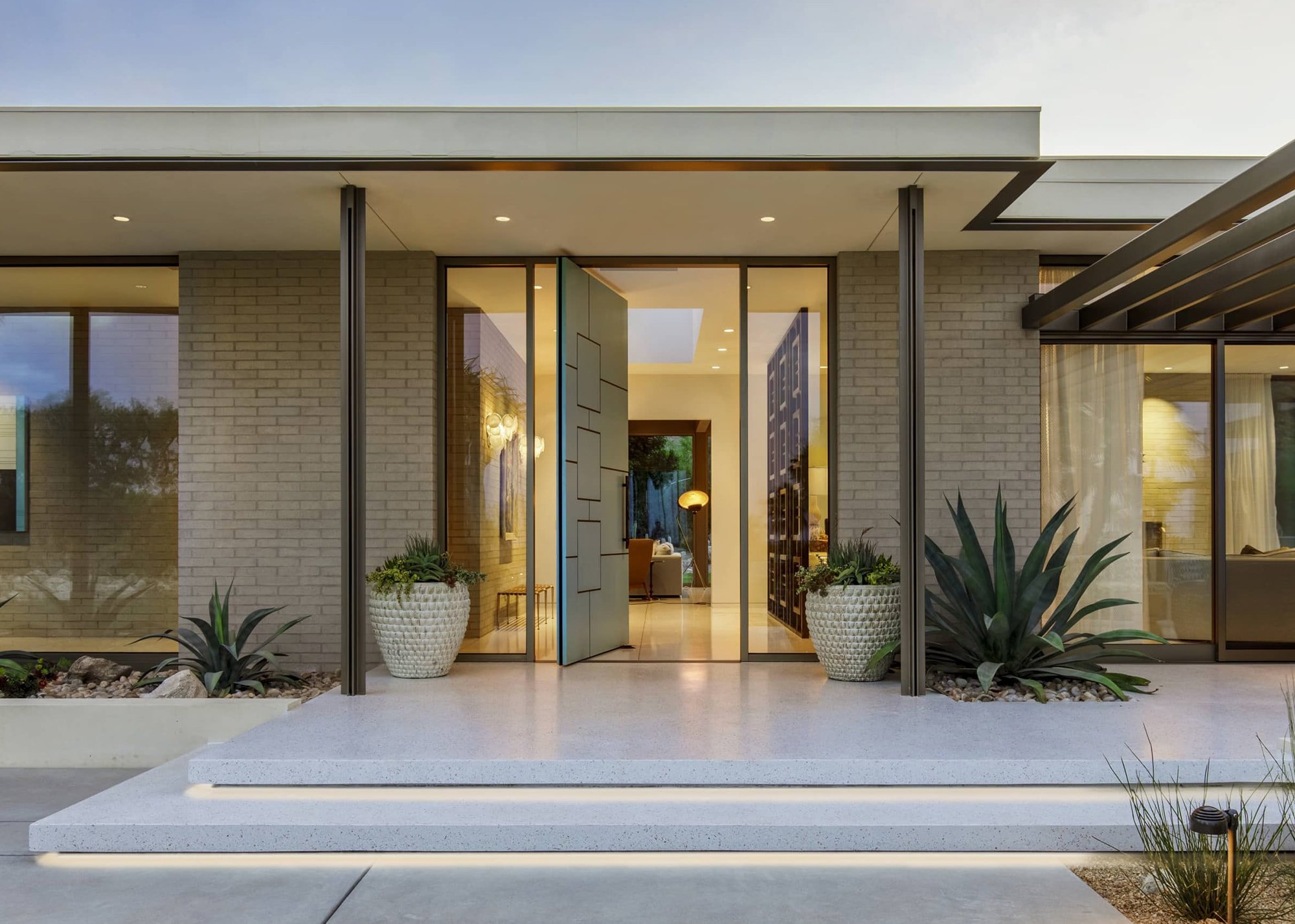

Millennium Series Panel Pivot Door

The Millennium Series Pivot Panel Door System with the frame depth of 80mm is the latest addition to our portfolio of door systems, designed for extra large openings in contemporary architectural projects.

  • Operation: Pivot opening inward or outward

  • Allows for use as an emergency exit

  • Support for panic devices

  • Concealed hinges hardware available

  • Repeated use resistance: 1,000,000 cycles

  • Dual tone capabilities

  • ADA Hardware

MAXIMUM DIMENSIONS

  • Width (L): 82 1/2" (2,100mm)

  • Height (H): 118 1/8" (3,000mm)

MAXIMUM WEIGHT PER SASH

  • 550 lb (250kg)

SECTIONS

  • Frame: 3 1/8" (80mm)

  • Sash: 3 1/8" (80mm)

SYSTEM SPECS

  • Uvalue ≥ 0.20 Btu/h·ft2·F

  • Air Infiltration: 0.02cfm/ft²

  • Maximum Acoustic Insulation: Rw = 40dB

  • Maximum Glazing: 2 1/2" (64mm)

  • Profile Thickness: 2mm

  • Polyamide Strip Length: 24 & 26 mm

  • Inward or Outward Opening

DOWNLOADS:

The MILLENNIUM SERIES Pivot Panel Door can be fitted with a wide variety of panels to increase security and privacy, as well as the aesthetic appeal of the space. From ultra-contemporary entrance door with discreet groove milling and aluminum strips, to traditional decorative profiled panels and arches combined with inset glass elements, and everything in between.

Below are some of our most popular panel designs.

Vetrina’s doors are rated for use as emergency exits and can be equipped with a wide range of access control systems, including electronic and smart locks, three-point security locks, biometrics, automation, remote access, pass-codes, and more.
