Millennium Series Glass Pivot Door
The Millennium Series Pivot Glass Door System with the frame depth of 80mm is the latest addition to our portfolio of door systems, designed for extra large openings in contemporary architectural structures.
Operation: Pivot opening inward or outward
Allows for use as an emergency exit
Support for panic devices
Concealed hinges hardware available
Repeated use resistance: 1,000,000 cycles
Dual tone capabilities
ADA Hardware
MAXIMUM DIMENSIONS
Width (L): 82 1/2" (2,100mm)
Height (H): 118 1/8" (3,000mm)
MAXIMUM WEIGHT PER SASH:
550 lb (250kg)

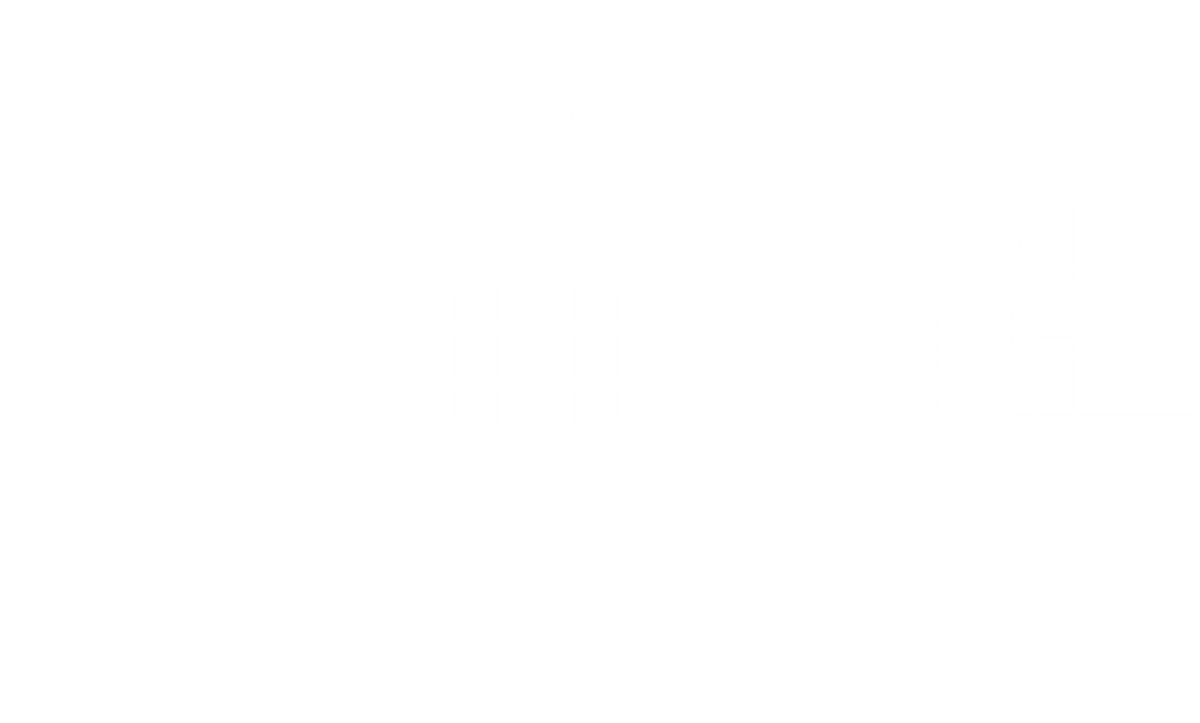

SECTION:
Frame: 3 1/8" (80mm)
Sash: 3 1/8" (80mm)
SYSTEM SPECS:
Uvalue ≥ 0.20 Btu/h·ft2·F
Air Infiltration: 0.02cfm/ft²
Maximum Acoustic Insulation: Rw = 40dB
Maximum Glazing: 2 1/2" (64mm)
Profile Thickness: 2mm
Polyamide Strip Length: 24 & 26 mm
Inward or Outward Opening
DOWNLOADS:
The Millennium Series Pivot Door can be fitted with either double or triple glazed IGUs up to 2-1/2” thick, or with a fully bonded aluminum panel. It can be installed to open inward or outward. Great for large openings in high-traffic spaces such as schools, airports, hospitals, office buildings, retail locations, and more.
Vetrina’s doors are rated for use as emergency exits and can be equipped with a wide range of access control systems, including electronic and smart locks, three-point security locks, biometrics, automation, remote access, pass-codes, and more.
