Aluminum Bi-Fold Doors for Commercial Spaces

If you are planning to renovate, remodel, or are in the process of new construction and are considering a bifold door option for your business, Vetrina’s commercial bifold door systems can be tailored to fit your location’s unique needs and aesthetic.

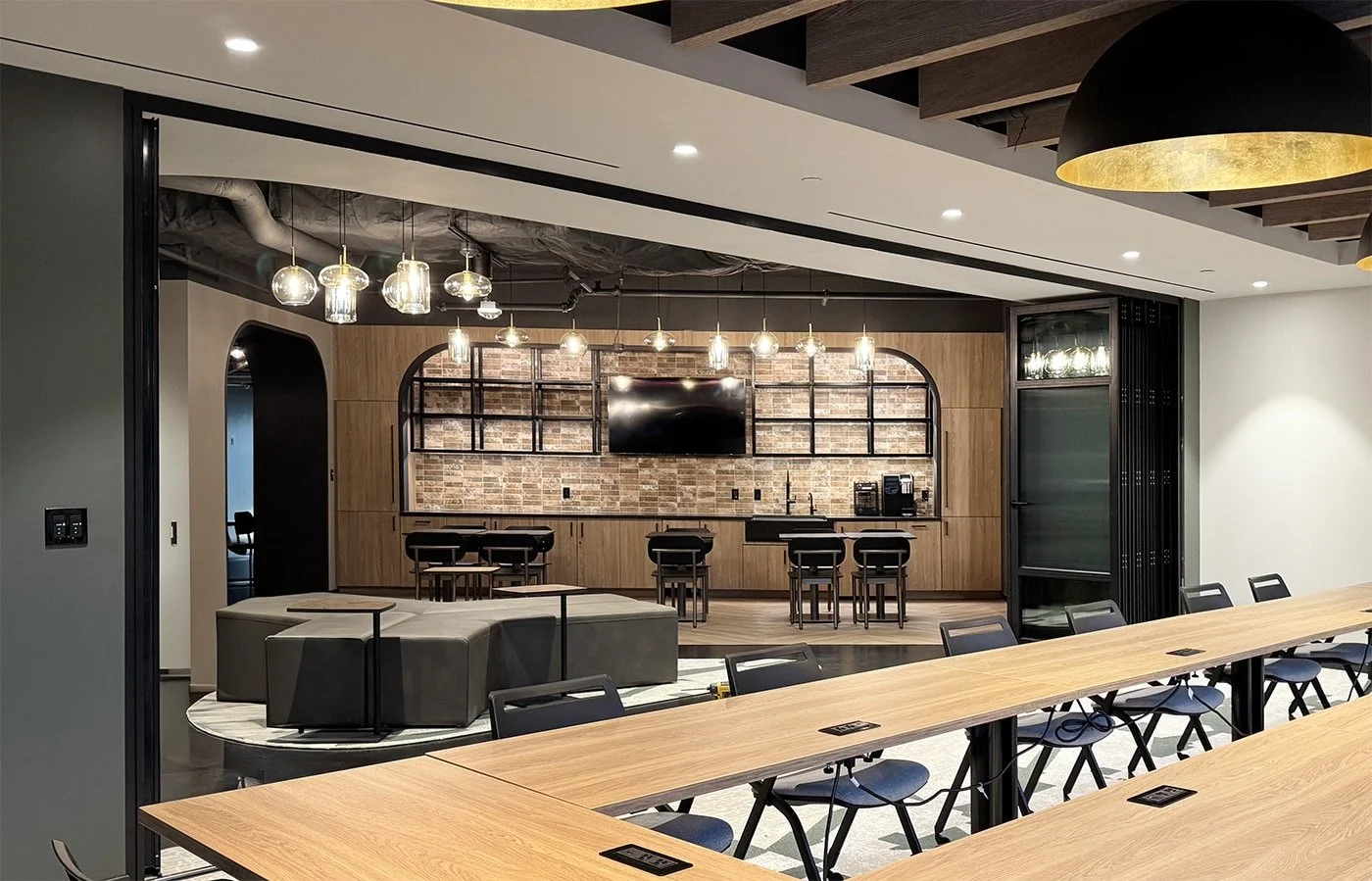

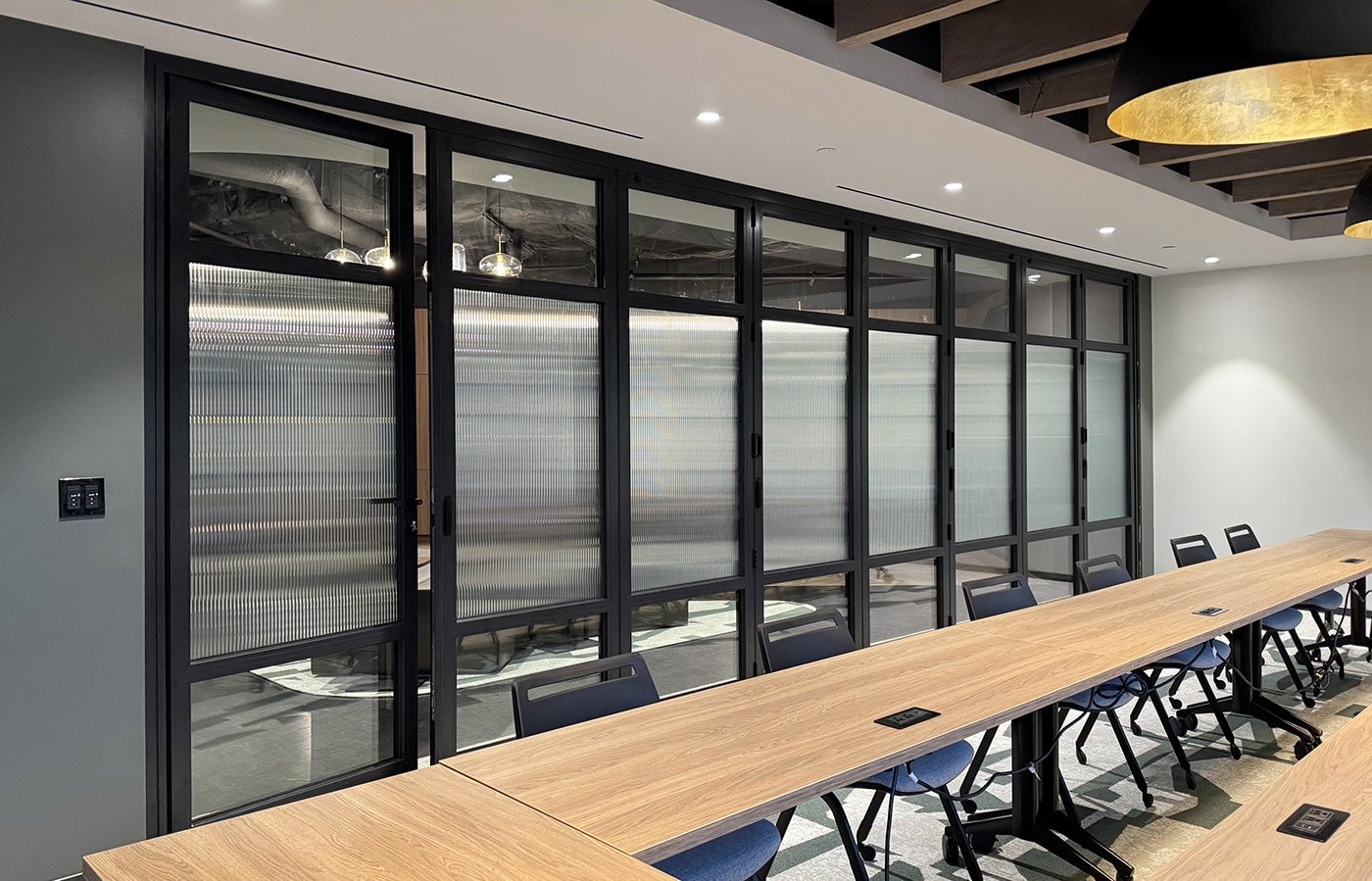

Our aluminum Bi-Fold Door systems serve as movable folding glass walls and are exceptionally versatile, quick, and easy to operate. They can be used as interior partitions in retail and office spaces, medical and education facilities, event venues, and much more!

COMPLIANCE

Meets/exceeds: AAMA/WDMA/CSA 101/I.S.2/A440-11
CLASS: CW PG30 (TYPE SP)
AIR INFILTRATION @ 1.57 psf: 0.1 cfm/sq.ft.
AIR EXFILTRATION @ 1.57 psf: 0.29 cfm/sq.ft.
WATER PENETRATION @ 4.59 psf: PASS/NO LEAKAGE
U-VALUE: 0.36 Btu/h×ft²×ºF
DESIGN PRESSURE @ 30.08 psf (pos): 0.42"
DESIGN PRESSURE @ 30.08 psf (neg): 0.39"
UNIFORM LOAD @ 45.11 psf (pos): 0.01"
UNIFORM LOAD @ 45.11 psf (neg): 0.04"

Test Specifications: NAFS North American Fenestration Standard/Specification for windows, doors, and skylights AAMA/WDMA/CSA 101/I.S.2/A440-08, A440S1-09, Canadian Supplement, ASTM F 842-14 Forced Entry Resistance Tests for Sliding Glass Doors, CAWM 300-96 Forced Entry Resistance Tests for Sliding Glass Doors, and AAMA 1304-02 Forced Entry Resistance Tests for Side Hinged Doors.

Download full report

Vetrina's Bi-Fold System features insulating pile weatherstripping and perimeter seals, and allows for double or triple glazing.

The system's use of adjustable jambs technology guarantees a perfect fit for any set of project specifications.

SPECIFICATIONS

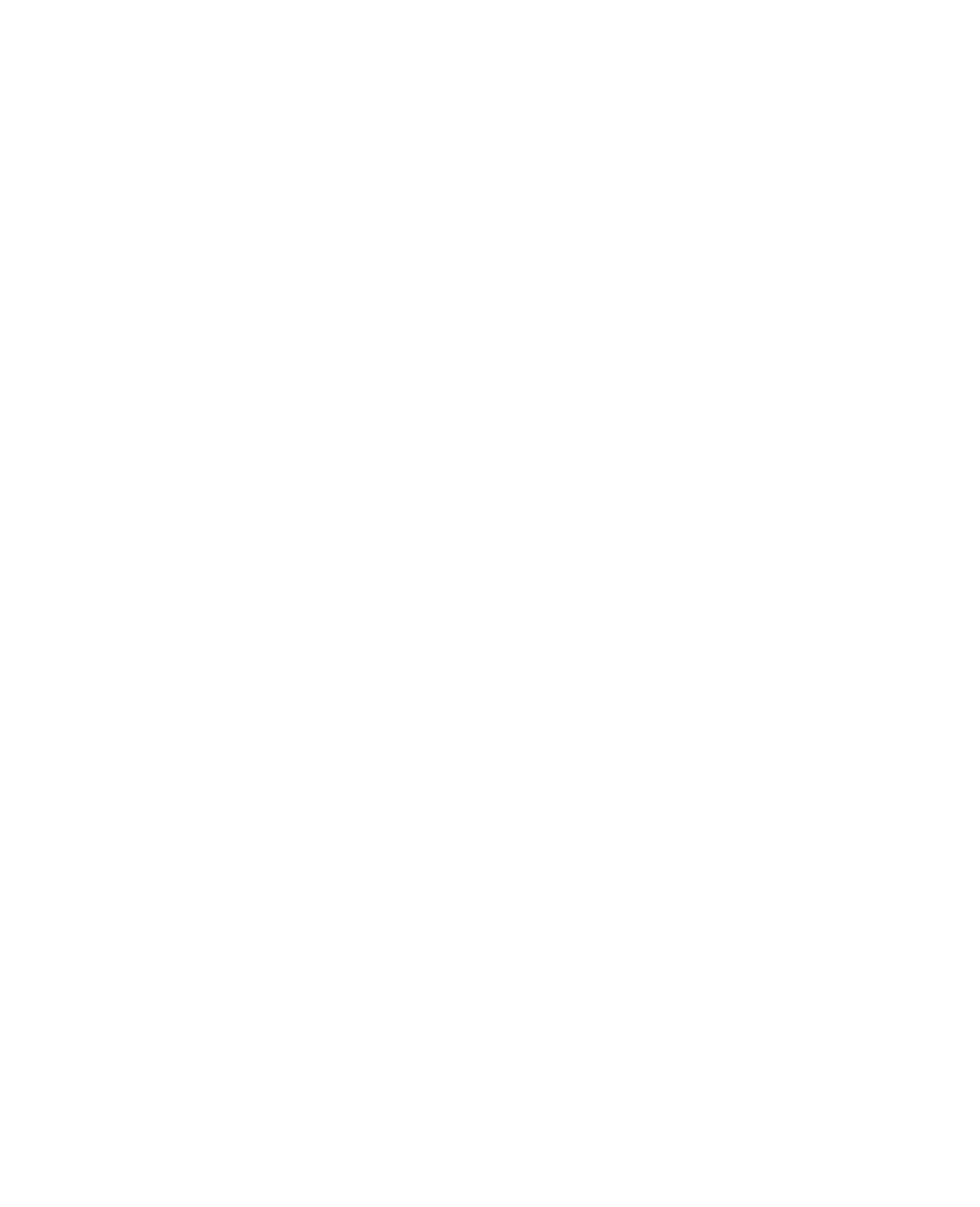

OPERATION:

Inward/Outward opening: Bi-fold from 2 to 14 sashes
Possibility of a 90º corner sash without mullion

MAX DIMENSIONS PER SASH:

Width: 47 1/4” (1,200 mm)
Height: 120” (3,000 mm)

SECTIONS:

Frame: 2 7/8” (73 mm)
Sash: 2 7/8” (73 mm)

POLYAMIDE STRIP LENGTH:

Frame: 3/4” (20 mm)
Sash: 1 3/16” (30 mm)

OTHER PARAMETERS:

Profile thickness: 1.8 mm
Max weight/sash: 264lb. (120kg)
Max glazing: 1 3/4" (45 mm)

DOCUMENTATION:

Vetrina’s Bi-Fold System can be optionally equipped with an ADA-compliant ultra-low threshold, and an ultra-slim central sash of only 4 3/8”

CUSTOMIZED TO FIT YOUR PROJECT AND YOUR BUDGET

Vetrina Bifold Systems are designed and manufactured according to a strict industry standard and your specific requirements. No matter your business or application, Vetrina can provide the perfect fit for your project needs. We can meet door specifications for a virtually unlimited range of business types, structures, and space configurations thanks to our folding glass door systems’ modularity.

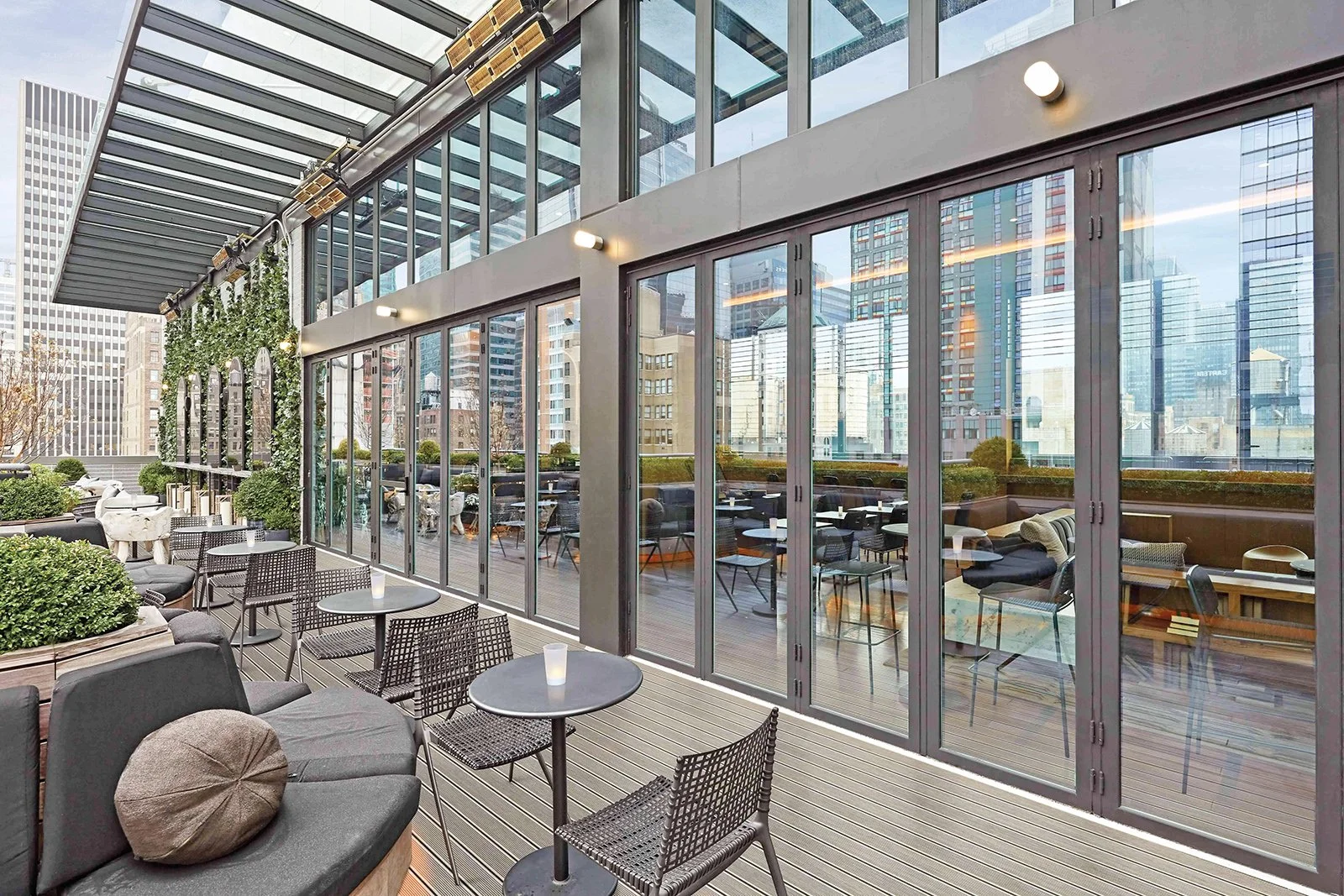

Our expansive Bi-Fold Doors are an ideal solution for keeping your restaurant, cafe, gym, etc. well-ventilated if viral particle transmission is a concern. Seamlessly merge the inside of your establishment with the outside patio for easy access by staff and customers, and for local public health regulations compliance.

OPERATION

FEATURES

• NOISE, DUST, AND WEATHER RESISTANT

• CORNER SASH POSSIBILITY

• WIDE RANGE OF POWDERCOAT COLORS

• AAMA CLASS: CW PG30 (TYPE SP)

• INWARD OR OUTWARD OPENING

• ACCOMMODATES FROM 2 TO 14 SASHES

• LOW-E TEMPERED ENERGY CONSERVING GLASS

• FITS ANY SIZE AND ANY OTHER SPECIFICATIONS

APPLICATIONS

• BARS, BREWERIES, CAFES & RESTAURANTS

• RETAIL STOREFRONTS

• CAR DEALERSHIPS

• GREENHOUSES & FLOWER SHOPS

• FITNESS CENTERS

• COWORKING SPACES

• CHILDCARE & EDUCATION FACILITIES

• GALLERIES & MUSEUMS

• ANY BUILDING WITH BACKYARD ACCESS

HARDWARE

In the spirit of no-nonsense approach to functional design we have done away with all the unnecessary elements and developed a hidden mechanism that leaves only the handle visible. This innovation introduces a novel positioning and retaining mechanism which allows it to be installed directly onto the sash with a simple snap.

Our Minimalist Line of door handles offers a clean aesthetic in a contemporary form factor, thanks to the fully concealed mechanism and ultra-durable construction. Its streamlined simplicity allows for quick and easy installation.

Full range of RAL finishes available.

Vetrina Bifold System Intro Video

CUSTOMIZED TO FIT YOUR PROJECT AND YOUR BUDGET

Our Aluminum Bifold Doors are built at our manufacturing facility just outside of Philadelphia, PA. Vetrina is the leading choice in commercial accordion doors among architects, builders, designers, engineers, & glaziers for our quality, value, support, and lifelong reliability.

Our customers enjoy a wide variety of glass options, including low-e, tinted, tempered, laminated, as well as single, dual, and triple pane glass for extra security. A comprehensive selection of handles and other hardware suitable for any design style and personal preferences is also available.
